TE 526 3D Energy (120Kg)

Product features

• with permanent energy transfer

• individual connection adapter options

• material stainless steel

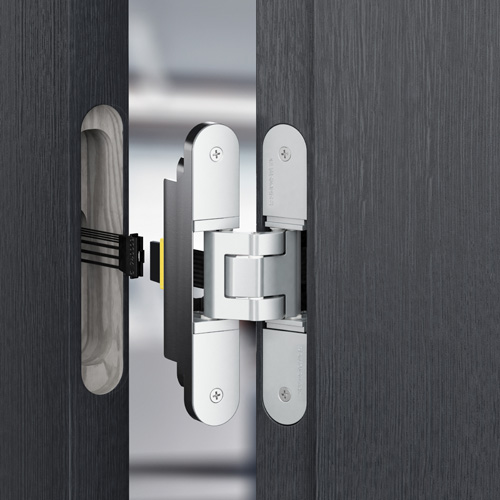

• completely concealed hinge system

• for timber, steel or aluminium frames

• for unrebated heavy-duty doors

• with comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm)

• maintenance-free slide bearings

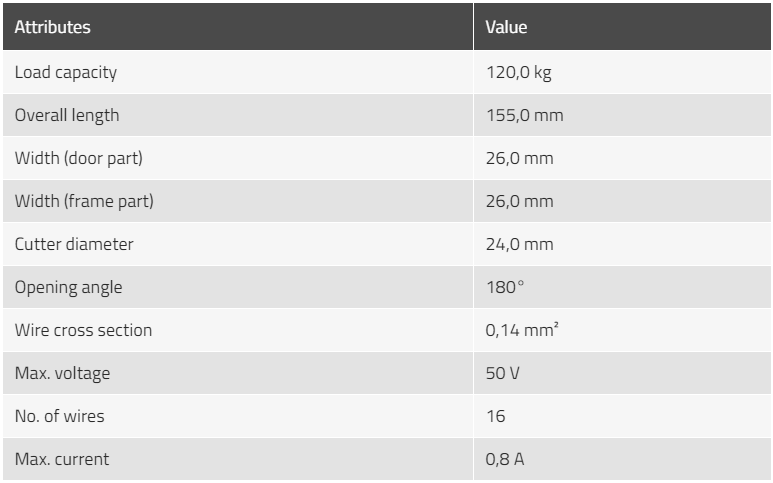

Technical details

Function range

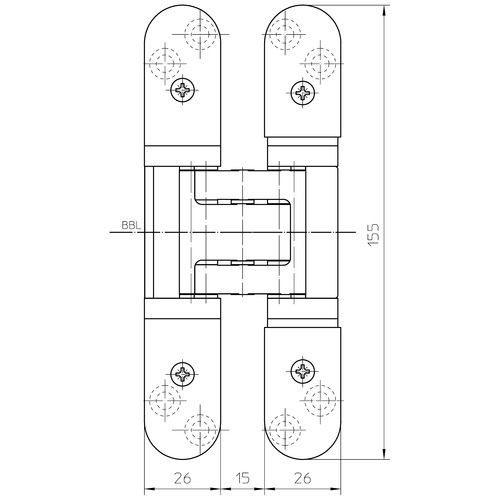

Drawings - front view

Finish(es) ：

040-Satin Stainless Steel
